Schedule

Events of users and groups can be added, edited, and displayed in Schedule.
Since each user's event can be grasped in daily, weekly and monthly, schedule among groups can be easily coordinated.
Furthermore, Schedule provides "Find Free Time" for schedule coordination, "Facility Reservation" for conference room and equipment, and notification function which send event information to other users.

* For more information, refer to  Web Conference .
* For more information, refer to  SmartViewer  .

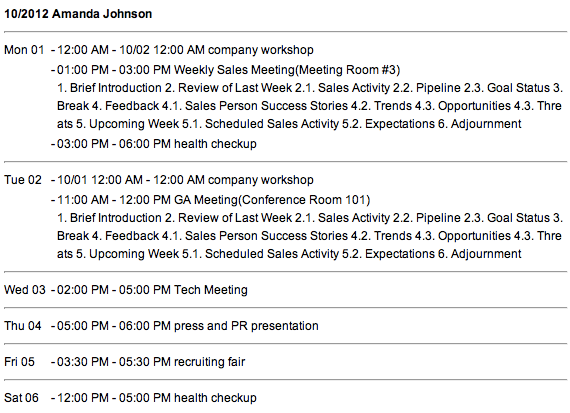

Print Button

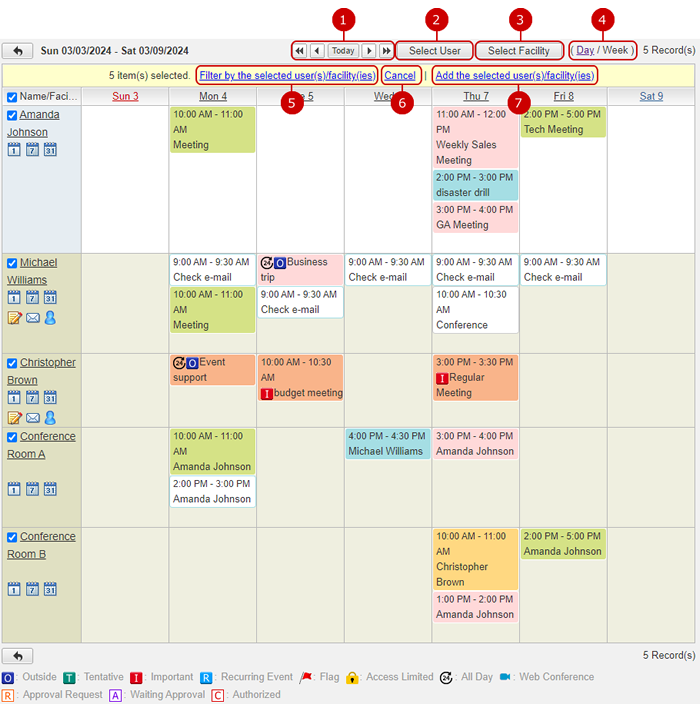

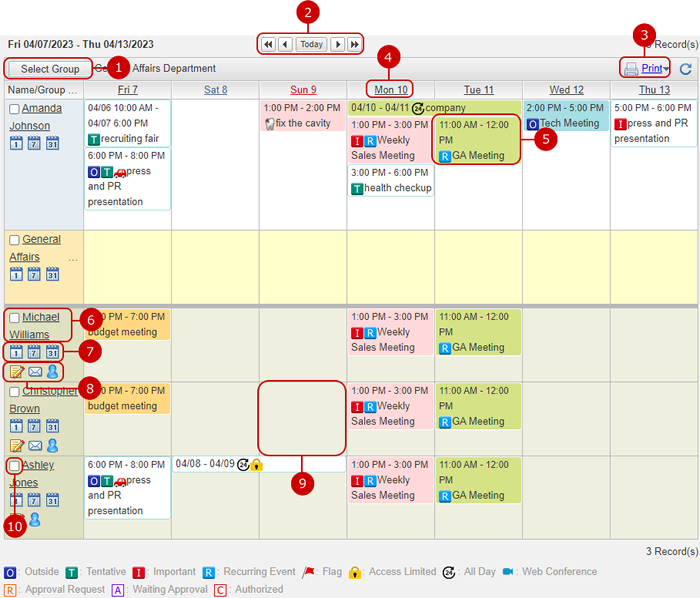

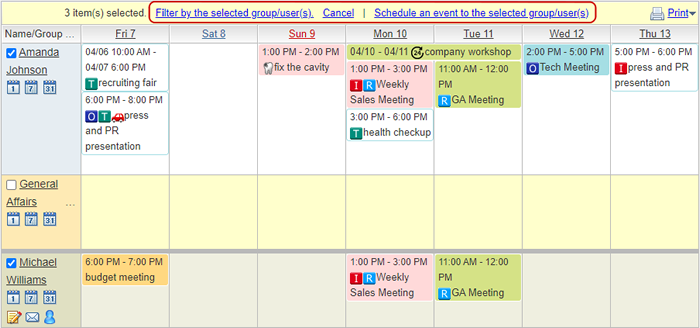

To Display Schedule (Group/Week)


One week schedule of you, the group you selected and users belong to the group are displayed.
You can add, view and edit events. You can add, view and edit events.
* Some events are not displayed if you do not have the rights to access them.
* In "Personal Settings" - "Display Settings" or "System Management" - "General Settings" which only system administrators can use, "Group Schedule" option is not set to display, the group schedule is not displayed.




* Some events are not displayed if you do not have the rights to access them.

To Drag And Drop to Move Dates
You can move the date of events by dragging and dropping the event box on a calendar.


Click the event, drag to the new date, and release your mouse, and the event is moved.
* When the [Update using drag & drop] setting in Personal Settings > Display Settings and System Management > General Settings is set to "No", you cannot update an Event using drag & drop.

Task update using drag & drop
You can move the time of ToDo Task by dragging and dropping it on the calendar.
Task update using drag & drop

Press and hold down the mouse button over a Task and move it to other day to change the day.
* When the "Update using drag & drop" setting in [Personal Settings > Display Settings] and [System Management > General Settings] is set to "No", you cannot update a Task using drag & drop.

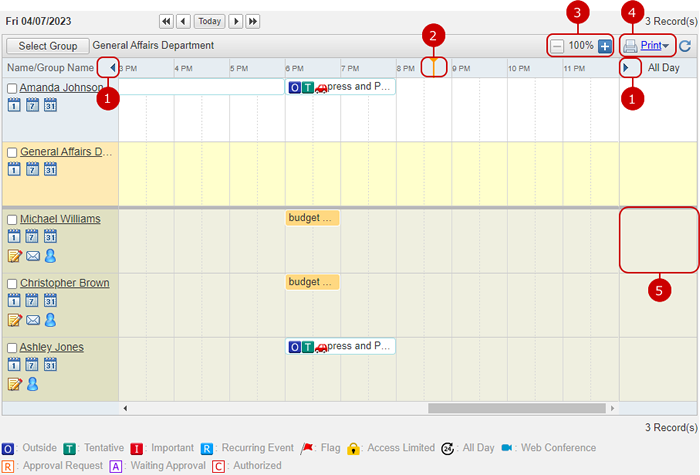

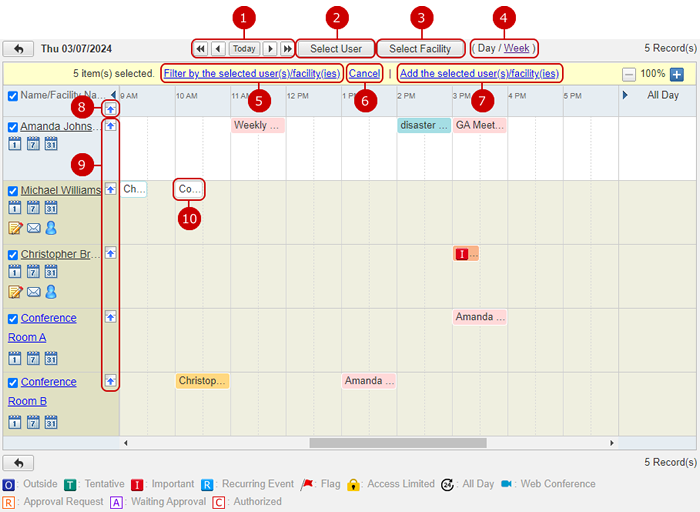

To Display Schedule (Group/Day)


One day schedule of you, the group you selected and users belong to the group are displayed.
You can add, view and edit events.
* Some events are not displayed if you do not have the rights to access them.
* In "Personal Settings" - "Display Settings" or "System Management" - "General Settings" which only system administrators can use, "Group Schedule" option is not set to display, the group schedule is not displayed.




* Some events are not displayed if you do not have the rights to access them.

To Drag And Drop to Move Dates
You can move the date of events by dragging and dropping the event box on a calendar.

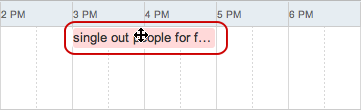

- To move time


Click the event, drag to the new time, and release your mouse, and the event is moved.

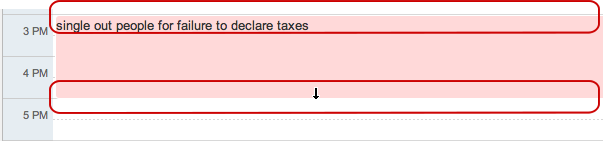

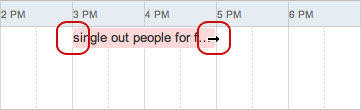

- To change length


Click a edge of the event, drag to the new time, and release your mouse, and the length of event is shorten or lengthened.

* Dragging and dropping changes the start time and end time to 30 minutes unit on Group/Day screen.
* When the [Update using drag & drop] setting in Personal Settings > Display Settings and System Management > General Settings is set to "No", you cannot update an Event using drag & drop.

Task update using drag & drop
You can move the time of ToDo Task by dragging and dropping it on the calendar.
- Time Period Change
Task update using drag & drop

Press and hold down the mouse button over a Task and drag it to change the time.
* You cannot change the length of ToDo Tasks.
* In the Group/Day screen, you can update the Tasks with drag and drop on units of 30 minutes.
* When the "Update using drag & drop" setting in [Personal Settings > Display Settings] and [System Management > General Settings] is set to "No", you cannot update a Task using drag & drop.

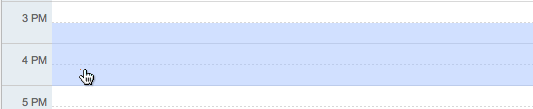

To Select Time of Events
Dragging the mouse, you can select a time span where events are assigned to.


Click a cell and drag the mouse, and you can add an event that will be assigned to the selected time. The time is editable on "Add Event" screen.

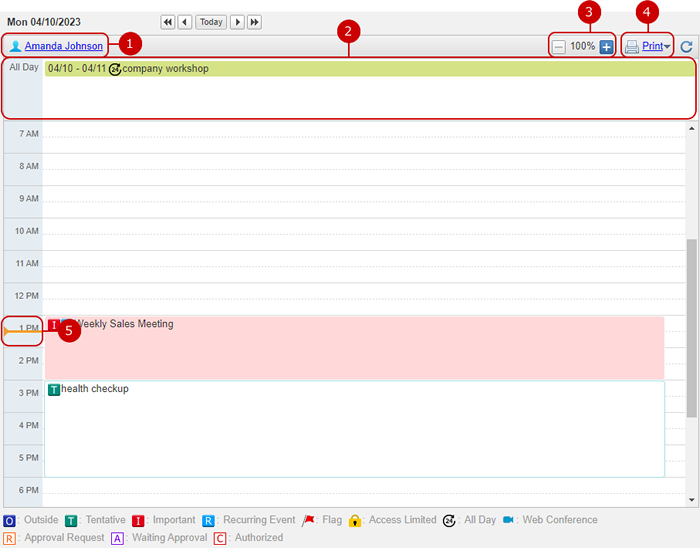

To Display Schedule (Day)


One day schedule of a user is displayed.
You can add, view and edit events.
* Some events are not displayed if you do not have the rights to access them.

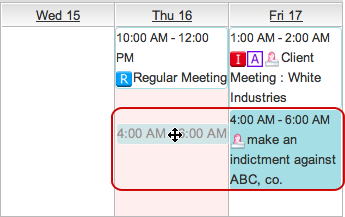

To Drag And Drop to Move Dates
You can move the date of events by dragging and dropping the event box on a calendar.
- To move time


Click the event, drag to the new time, and release your mouse, and the event is moved.

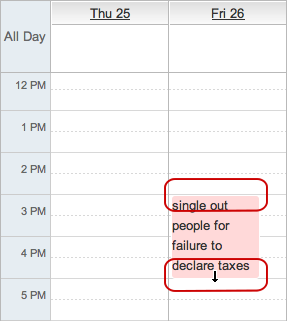

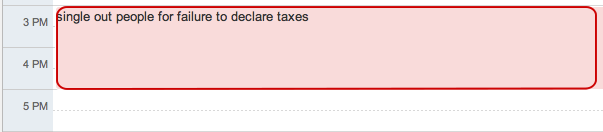

- To change length


Click a edge of the event, drag to the new time, and release your mouse, and the length of event is shorten or lengthened.

* Dragging and dropping changes the start time and end time to 30 minutes unit on Day screen.
* When the "Update using drag & drop" setting in [Personal Settings > Display Settings] and [System Management > General Settings] is set to "No", you cannot update an Event using drag & drop.

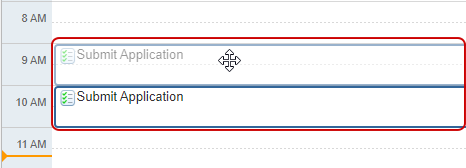

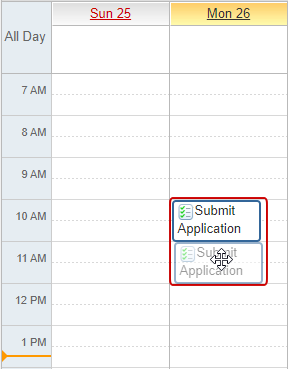

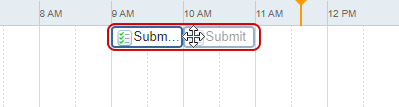

Task update using drag & drop
You can move the time of ToDo Task by dragging and dropping it on the calendar.
- Time Period Change
- Time Period Change

Press and hold down the mouse button over a Task and drag it to change the time.

* You cannot change the length of ToDo Tasks.
* In the Day screen, you can update the Tasks with drag and drop on units of 30 minutes.
* When the "Update using drag & drop" setting in [Personal Settings > Display Settings] and [System Management > General Settings] is set to "No", you cannot update a Task using drag & drop.


To Select Time of Events
Dragging the mouse, you can select a time span where events are assigned to.


Click a cell and drag the mouse, and you can add an event that will be assigned to the selected time. The time is editable on "Add Event" screen.

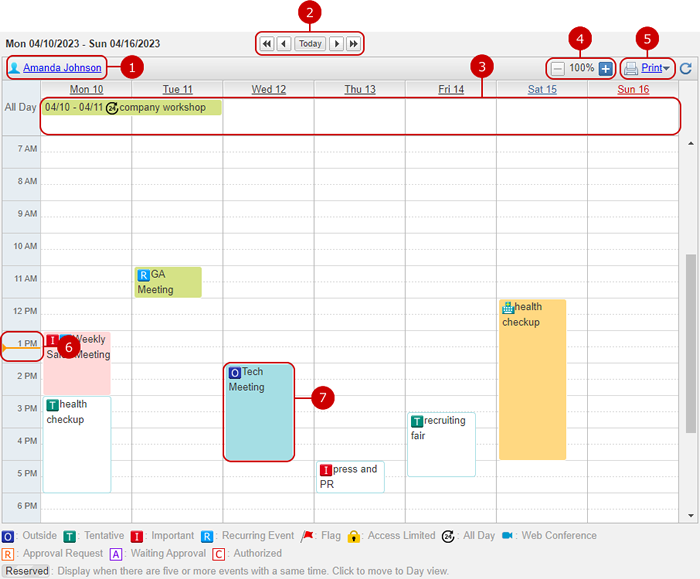

To Display Schedule (Week)


One week schedule of a user is displayed.
You can add, view and edit events.
* Some events are not displayed if you do not have the rights to access them.

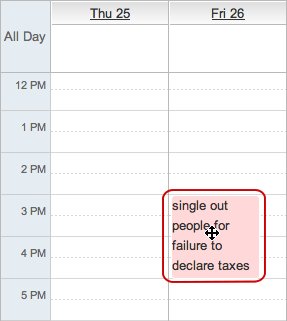

To Drag And Drop to Change Time
You can change the time of events by dragging and dropping the event box on a calendar.

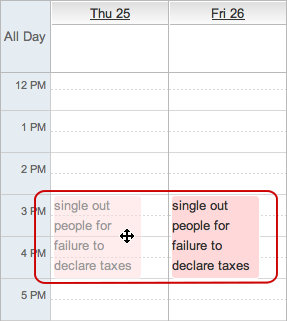

- To move date


Click the event, drag to the new date, and release your mouse, and the event is moved.

- To move time


Click the event, drag to the new time, and release your mouse, and the event is moved.

- To change length


Click a edge of the event, drag to the new time, and release your mouse, and the length of event is shorten or lengthened.

* Dragging and dropping changes the start time and end time to 30 minutes unit on Week screen.
* When the "Update using drag & drop" setting in [Personal Settings > Display Settings] and [System Management > General Settings] is set to "No", you cannot update an Event using drag & drop.

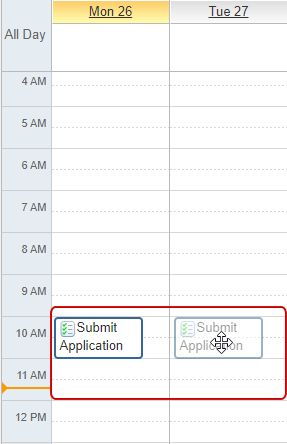

Task update using drag & drop
You can move the time of ToDo Task by dragging and dropping it on the calendar.
- To move date
To move date

Press and hold down the mouse button over a Task and drag to another day to change the day.

- Time Period Change
Time Period Change

Press and hold down the mouse button over a Task and move it to other day to change the day.

* You cannot change the length of ToDo Tasks.
* In the Week screen, you can update the start time and end time of Tasks with drag and drop on units of 30 minutes.
* When the "Update using drag & drop" setting in [Personal Settings > Display Settings] and [System Management > General Settings] is set to "No", you cannot update a Task using drag & drop.


To Select Time of Events
Dragging the mouse, you can select a time span where events are assigned to.


Click a cell and drag the mouse, and you can add an event that will be assigned to the selected time. The time is editable on "Add Event" screen.

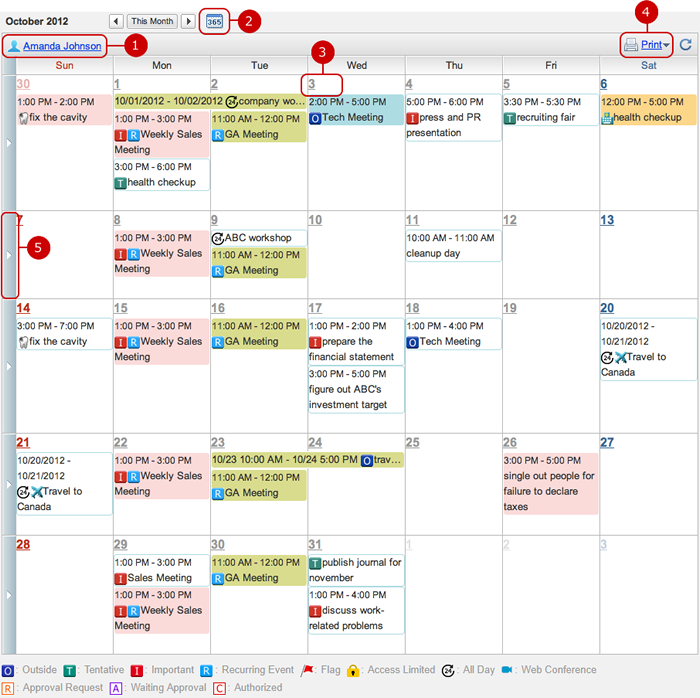

To Display Schedule (Month)


One month schedule of a user is displayed.
You can add, view and edit events.
* Some events are not displayed if you do not have the rights to access them.




To Drag And Drop to Move Dates
You can move the date of events by dragging and dropping the event box on a calendar.
- To move date


Click the event, drag to the new date, and release your mouse, and the event is moved.
* When the [Update using drag & drop] setting in Personal Settings > Display Settings and System Management > General Settings is set to "No", you cannot update an Event using drag & drop.

Task update using drag & drop
You can move the time of ToDo Task by dragging and dropping it on the calendar.
- To move date
To move date

Press and hold down the mouse button over a Task and drag to another day to change the day.
* When the [Update using drag & drop] setting in Personal Settings > Display Settings and System Management > General Settings is set to "No", you cannot update a Task using drag & drop.

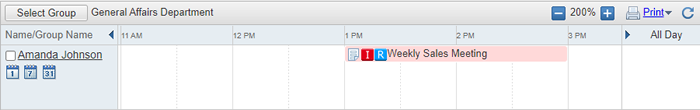

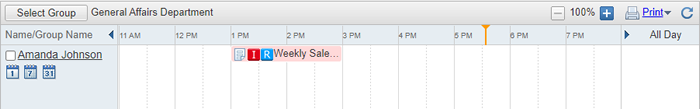

To Enlarge/Shrink Schedule


Screens that display the "+" and "-" can enlarge or shrink the schedule.
You can enlarge or shrink to 100%, 200%, or 300% scaling factor.

To Enlarge/Shrink Schedule
Group/Day (100%)
Group/Day (100%)
Group/Day (200%)
Group/Day (200%)

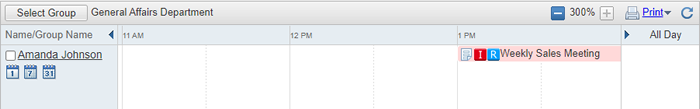

Group/Day (300%)
Group/Day (300%)

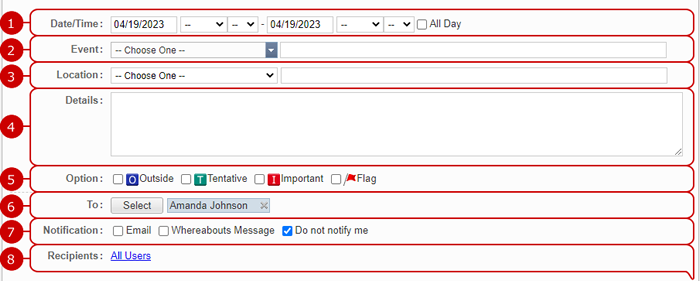

To Add Event


When you press an area of the event displaying field in "Group/Day", "Group/Week", "Day", "Week" or "Month" screen, the are is colored and selected.
When you press the selected area again, Add Event screen is displayed. If the date and time was obtained, they are set to the event.

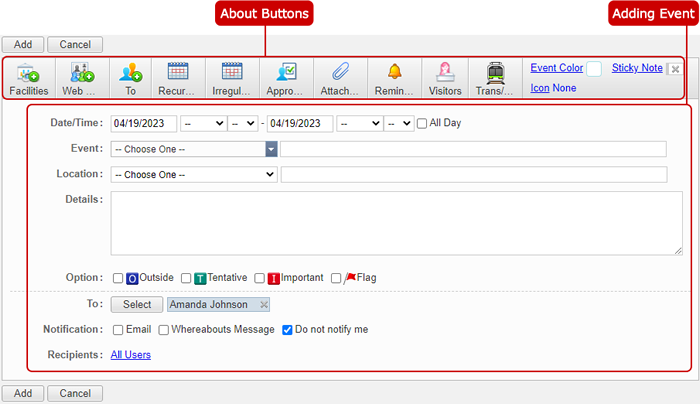

About Buttons




The "Trans/Expense" button appears when the Transportation/Expense features are enabled by the system administrator.
(For more information, please refer to  Transportation/Expenses > To Add Transportation/Expense Data  in User's Manual)

Adding Event




Click "Add" button to save and add the data.

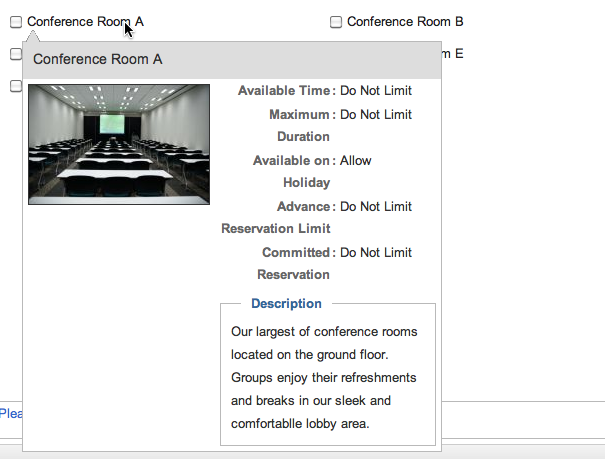

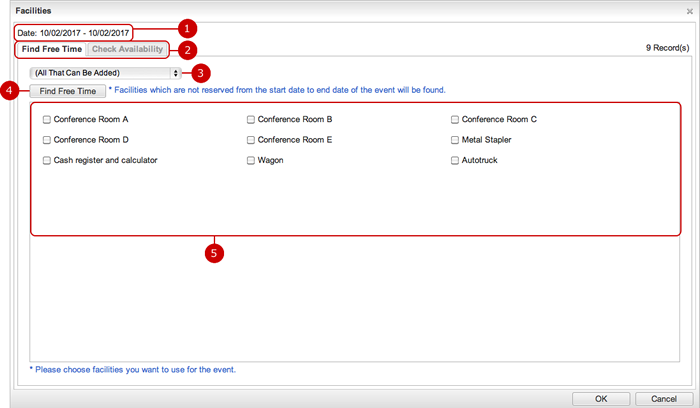

To Reserve Facilities


When you press Facilities in Add Event screen, Facilities window is displayed.
You can search and reserve facilities for the event.

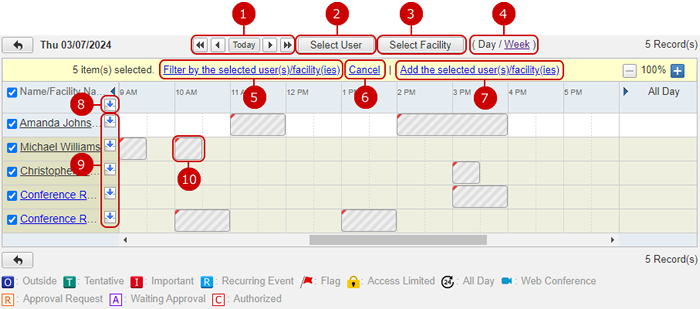

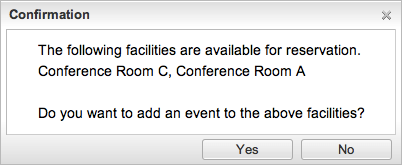

- To Find Free Time and Select
Find facilities which are free from the start date/time to end date/time.

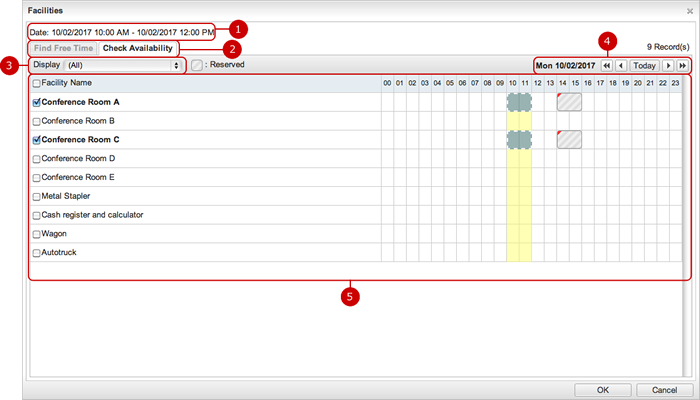

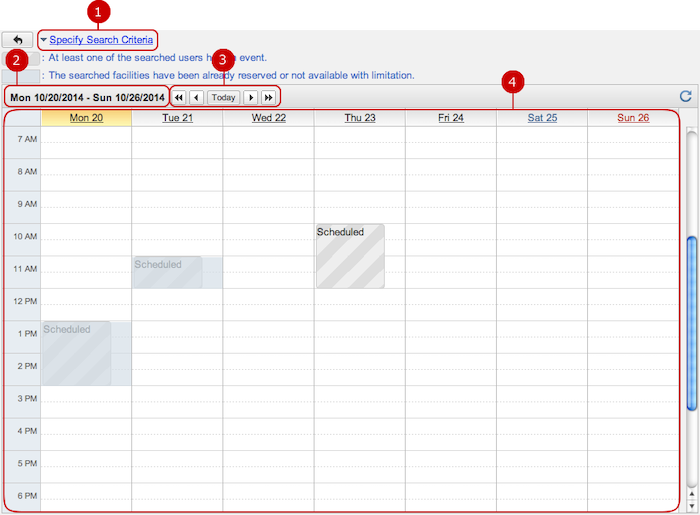

- To Check Availability And Select
Check the start date to end date of the event and availability of each facility and select facilities.




After the selection is complete, when you press "OK" button, the facilities are set to the event.

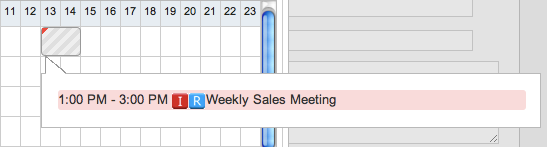

- Event Window

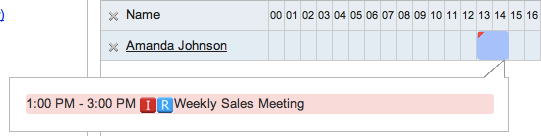

When you press a "hatched" area, the event scheduled in the period is displayed.

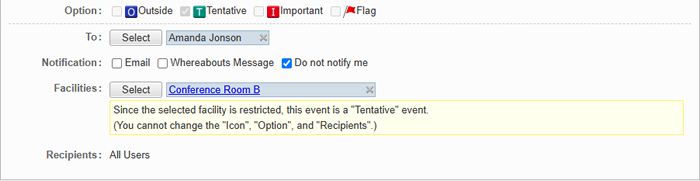

- Selection Facility with Committed Reservation Option

The message appears in the entry screen and the tentative option is checked.

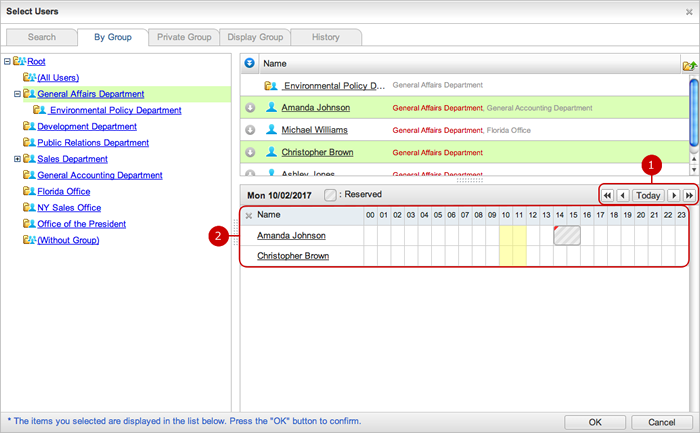

To Add Event to Other Users


When you press "Users" in Add Event screen, Select Users window is displayed.
Select users/groups to whom you want to add the same event.
* You cannot add the event to users/groups whom you do not have the "Add" permission for.



In the selection screen, you can select users/groups while checking their scheduled events.
* Follow the same operations as the user/group selection.
(For more details about user/group selection, please refer to  Common Functions for All Screens > User/Group/Role Selection  in User's Manual.)


After the selection is complete, when you press "OK" button, the users are set to the event.

- Event Window
When you press a "hatched" area, the event scheduled in the period is displayed.

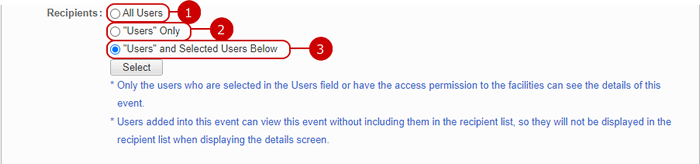

To Assign Recipients of Events


Click the link of "Recipients" in "Add Event" screen, and Recipients setting selection will appear.
With this setting you can permit only users of Recipients to access the event.
"'Users' Only" works in the same feature as "Secret" of V2 and earlier versions. (The "Secret" option has been obsoleted due to the new "Recipients" feature.)

* This field appears only when "Allow" is selected in "Add Access Limited Event" in "System Management" - "General Settings".
* If "Unreadable by Anyone" is enabled in "Add Access Limited Event" in "System Management" - "General Settings", even a system administrator or an application administrator cannot access to event data unless they have been selected as a Recipient.

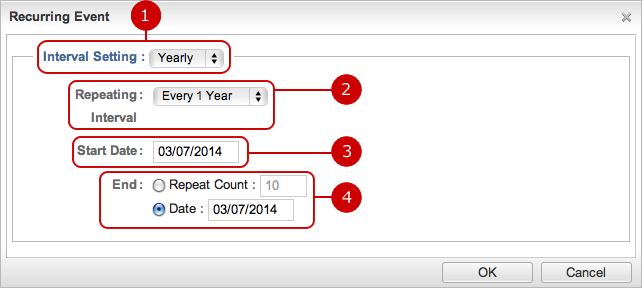

To Setup Recurring Event


When you press Recurring Event, Recurring Event window is displayed.
You can add recurring events such as regular meeting, which is held on the same time and location.

Repeating Interval of the event can be set daily, weekly, monthly and yearly.

- Recurring Daily

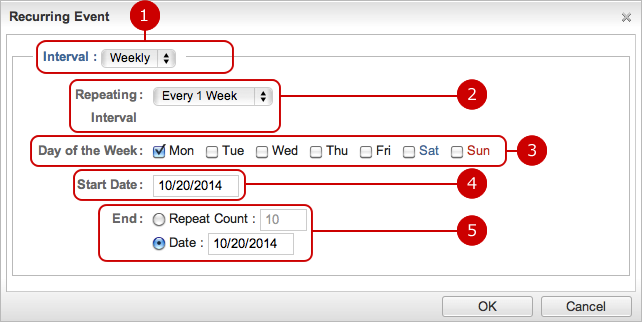

- Recurring Weekly

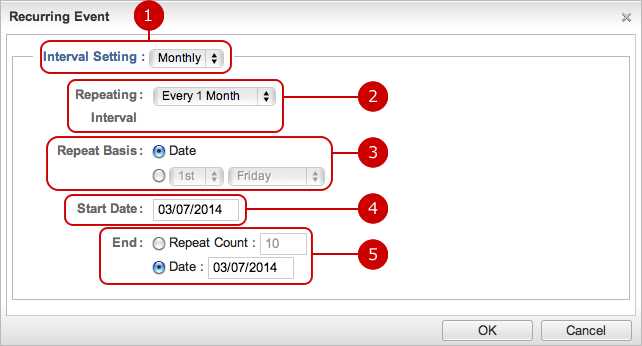

- Recurring Monthly



- Recurring Yearly



When you press "OK" button, the recurring event is set.

When the recurring event has been set, Date/Time field becomes Recurring Event and the recurring setting is displayed in the link.
When you press the link, Recurring Event window is displayed.



To Setup Irregular Event


When you press Irregular Event, Irregular Event window is displayed.
You can add the same event on several days by selecting multiple date.




When you press "OK" button, the irregular event is set.

When the irregular event has been set, Date/Time field becomes Irregular Event and the number of events is displayed in the link.
When you press the link, Irregular Event window is displayed.

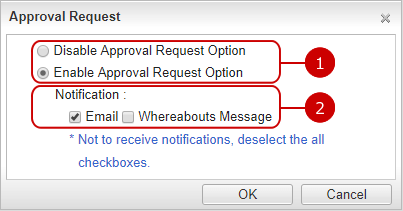

To Create Approval Request Event


When you press Approval Request, an Approval Request window is displayed.
When you add the event to other users, you can request for approval of the event.




When you press "OK" button, the irregular event is set.

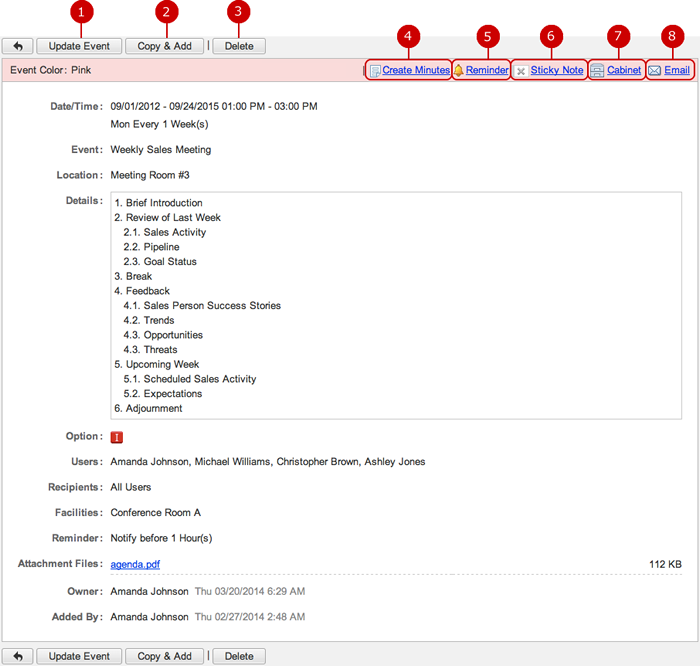

To Check Details of Event

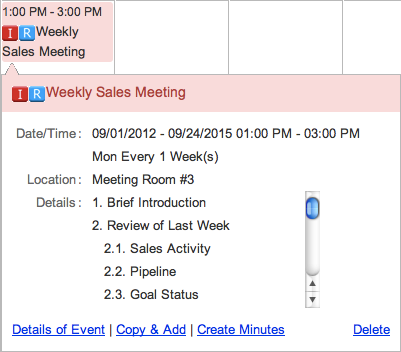

When you press an event in "Group/Day", "Group/Week", "Day", "Week" and "Month" screen, the part of the event information is displayed in balloon.
* If you do not have "Read" access right to the owner of an event, registrant of an event, participated users, these events are not displayed.



When you press the link of Detail of Event, Details of Event screen is displayed.
If you want to edit an event, use this screen.

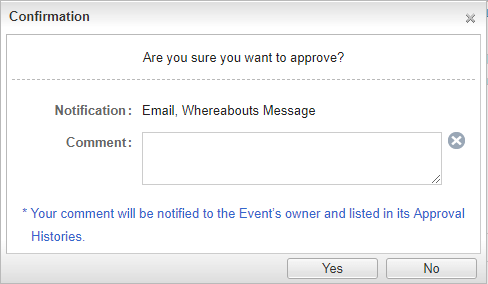

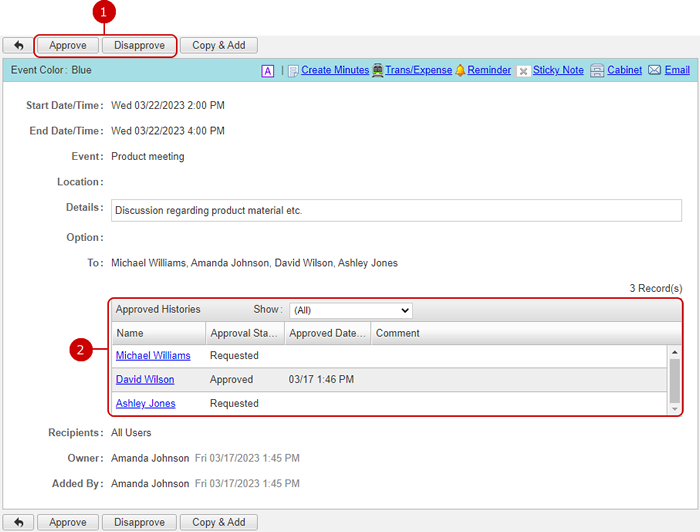

- When Approval Is Requested
If the event that approval is requested, "Approve" and "Disapprove" button are displayed in the detail of the event screen.

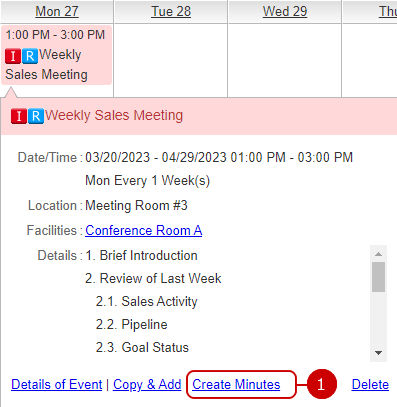

- When Minutes Is Set
If minutes are set to an event, the link of Details of Minutes is displayed in the balloon.

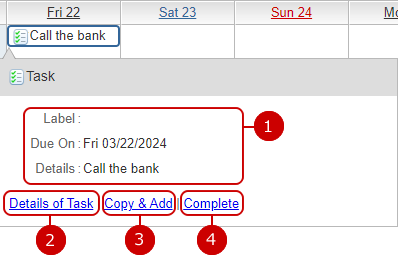

- When Due Is Set
If the due of a task is set, the task is displayed in the balloon.





To Update Event


When you press "Update Event" button in Detail of Event, Update Event screen is displayed.
In addition, you can display Update Event screen by pressing two times quickly over an area of the event displaying field.
* If Editing or Deleting Events option in "System Management" - "General Settings" is set to "Allow Only Owner", the users who match the following conditions can update the event.
  • The owner of the event.
  • Users who have update access right to all participating users and the facilities added to the event.
* If Editing or Deleting Events option in "System Management" - "General Settings" is set to "Allow Anyone Who Are Added to The Event", the users who match the following conditions can update the event.
  • The owner of the event.
  • Users who are participating in the event.
  • Users who have update access right to all participating users and the facilities added to the event.



You can edit any items as you can do on Add Event screen.

- In the case of the event is a recurring event or irregular event
The Date/Time field is replaced by the dedicated field.
If you want to change the recurring/irregular setting, press the link of the setting after the date field.
When you press the link, Recurring/Irregular Event window is displayed.




To unselect an attachment file, click "x" before the file name.
Other things are the same as Add Event screen.

Click "Update" button to save the changes.

* If you edit a recurring event or irregular event and press "Update", a confirmation window is displayed.
In the confirmation window, you can choose the period of the event you update.

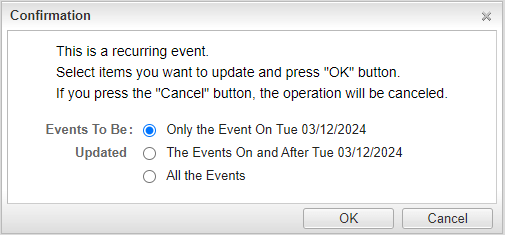

- Confirmation Window for Updating Recurring/Irregular Event

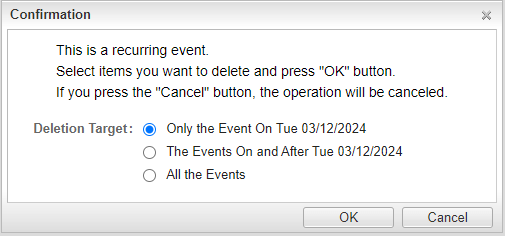

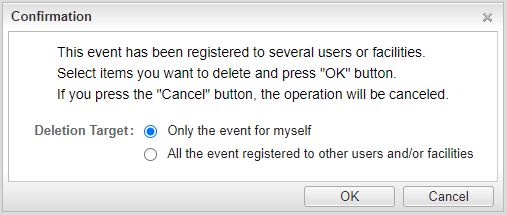

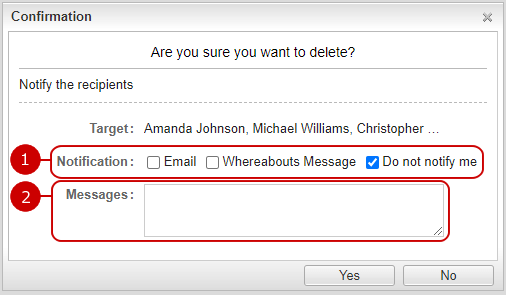

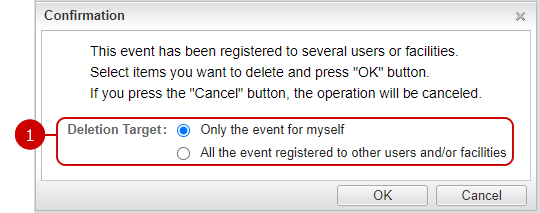

To Delete Event

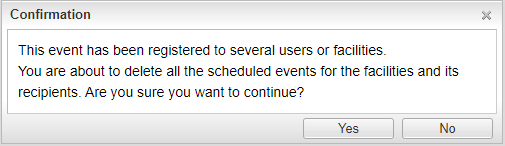

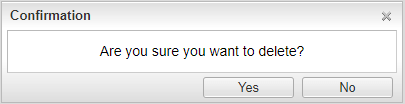

When you press "Delete" button in Detail of Event or Update Event screen, or the link of Delete in the balloon, a confirmation window is displayed.
The message of the confirmation window may differ by user.
* If Editing or Deleting Events option in "System Management" - "General Settings" is set to "Allow Only Owner", the users who match the following conditions can delete the event.
  • The owner of the event.
  • Users who have delete access right to all participating users and the facilities added to the event.
* If Editing or Deleting Events option in "System Management" - "General Settings" is set to "Allow Anyone Who Are Added to The Event", the users who match the following conditions can delete the event.
  • The owner of the event.
  • Users who are participating in the event.
  • Users who have delete access right to all participating users and the facilities added to the event.

- Regular Confirmation Window


This type of confirmation window is displayed in the case of following.

- Delete Target Confirmation Window


This type of confirmation window is displayed, if the user is participated in the event (who has "Delete" right to all the users and facilities).
* Clicking the "Delete" button in the Update Event screen will display regular confirmation window.


When the user presses "OK" button, the event is deleted. The deleted events cannot be recovered. Please take note.


- Confirmation Window for Non-Owner Deletes Event


This type of confirmation window is displayed, if the user is not participated in the event (who has "Delete" right to all the users and facilities).
When the user presses "Yes" button, the event will be deleted. The deleted events cannot be recovered. Please take note.
* Clicking the "Delete" button in the Update Event screen will display regular confirmation window.


- Confirmation Window for Recurring/Irregular Event


This type of confirmation window is displayed, if the event is recurring/irregular event.
When the user presses "Yes" button, the event will be deleted. The deleted events cannot be recovered. Please take note.
* If the user is not participated in the event (who has "Delete" right to all the users and facilities),
The following confirmation window (Delete Target Confirmation Window) is displayed prior to displaying Confirmation Window for Recurring/Irregular Event.
- Delete Target Confirmation Window

* Only the event for myself: Only the user's event is deleted.
* This window is not displayed when you clicked "Delete" button in Update Event screen.


To Notify Events Deletion


If a user who delete an event sets Notification When Deleting option to "Use", additional input fields appear to send a notification.
A notification is sent to users who are participated in the event.
* You can set Notification When Deleting option by Delete Events Notification Settings in Personal Settings.
* Even if you set Notification When Deleting option to "Use", the input fields may not be displayed because of the settings by the administrator.




When you press "Yes" button, a notification is sent and the event is deleted. The deleted events cannot be recovered. Please take note.
* The input fields are displayed in each delete confirmation window.
Please refer to the explanation of  To Delete Event  about the delete confirmation windows.

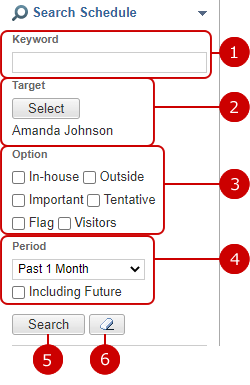

To Search Schedule


When you open the menu on the left side of screen, the schedule search function appears.
You can find events by entering the conditions, such as keyword, option, period.





To Use Convenience Tools


When you open the menu on the left side of screen, you can use convenience tools dedicated for Schedule.
The tools include Find Free Time, List View, Printable View, Import from CSV File, Export to CSV File.





To Find Free Time of Users and Facilities


When you open the menu on the left side of screen, Find Free Time is available.
You can find free time of users and facilities with the condition such as users, facilities, period.
If you want to add an event which is using facilities to several users, you can find free time of both the users and facilities.




When you press "Search" button, events that match the search criteria are displayed in the list screen.

- Search Results



To Drag to Select Time of Events
Dragging the mouse, you can select a time span where events are assigned to.


Click a cell and drag the mouse, the selected and highlighted time span changes.
Then release the mouse button, and you will move to "Add Event" screen where the selected users, facilities, and time span are assigned.
If any of the selected facilities is not available at the time, a confirmation window shown below will appear.

- At least one facility is not available at the time

The confirmation window shows available facilities of all of the selected ones.
Click "Yes" to move to "Add Event" screen where the selected users, shown facilities, and the selected time span are assigned.

- No facility is available at the time

The warning window says that all of the selected facilities are not available at the selected time.
* If all of the selected facilities are not available, you cannot move to "Add Event" screen. Select other ones.


To Display Schedule of Selected User(s)/Facility(ies)


"Events Selected (Day/Week)" is one of Convenience Tools which is displayed when the menu on the left side of the screen is open.
When you press the link of Day or Week, the schedule of the selected user(s)/facilitiy(ies) events is displayed.

Day Display (Hide Details)
Display Schedule of Selected User(s)/Facility(ies)


Day Display(Show Details)
Details Display


Week Display
Week Display

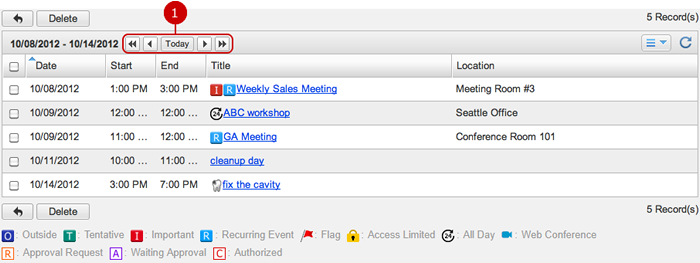

To Browse List View


List View (Weekly/Monthly) is one of Convenience Tools which is displayed when the menu on the left side of the screen is open.
When you press Weekly or Monthly, the list of events from the date of schedule being displayed for 1 week, 1 month respectively is displayed.
* If you select all, you cannot delete recurring and irregular events. Please delete the events individually.




To Print Events List


Printable View is one of Convenience Tools which is displayed when the menu on the left side of the screen is open.
When you press Weekly or Monthly, the list of events from the date of schedule being displayed for 1 week, 1 month respectively is displayed.

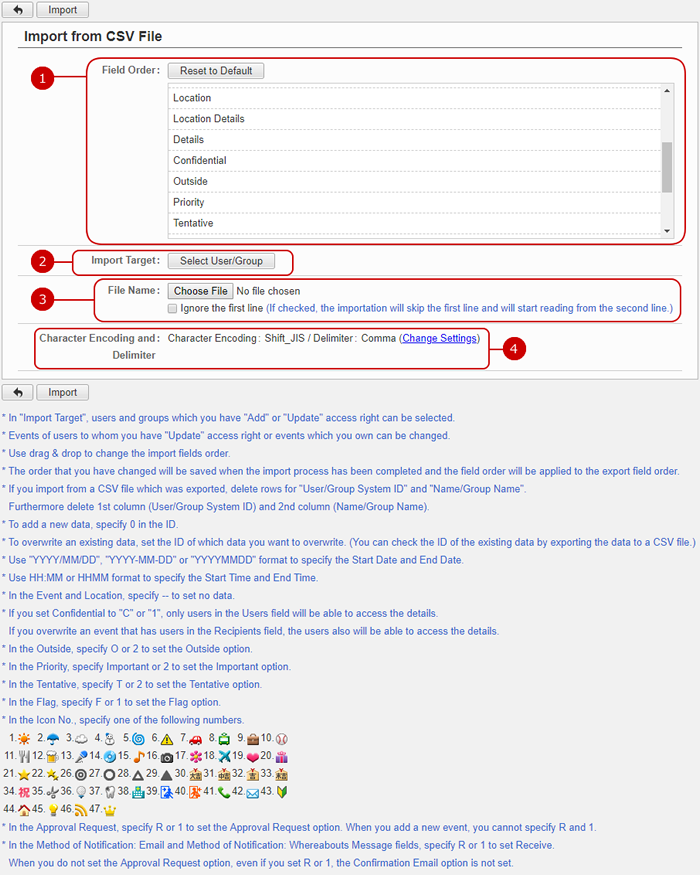

To Add Events from File (Import)


Import from CSV File is one of Convenience Tools which is displayed when the menu on the left side of the screen is open.
When you press the link of Import from CSV File, Import from CSV File screen is displayed.
You can add events from a file in one batch.




After all entries are completed, when you press "Import" button, importing events is started.

* Updating irregular or recurring events will exclude the date from the original irregular or recurring events and create a new event.

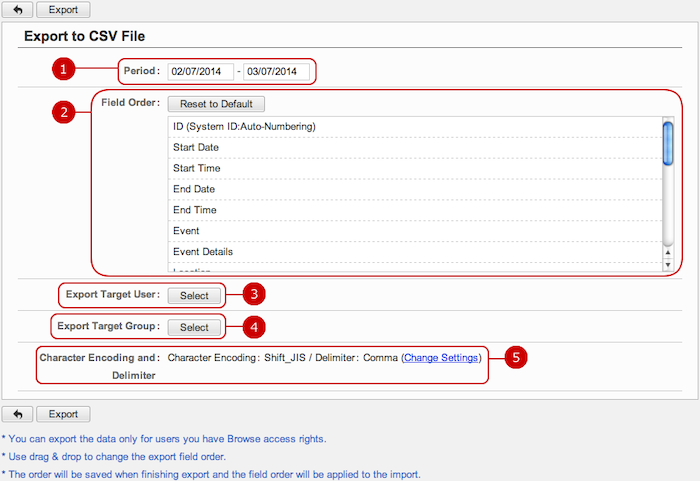

To Save Events to File (Export)


Export to CSV File is one of Convenience Tools which is displayed when the menu on the left side of the screen is open.
When you press the link of Export to CSV File, Export to CSV File screen is displayed.
You can save events data to a file.




After all entries are completed, when you press "Export" button, exporting events is started.
