You can customize some of settings on Personal Settings screen of each application. This chapter indicates how to do that. * Contents that can be set differs for each application.
To Setup Private Portal Design Settings

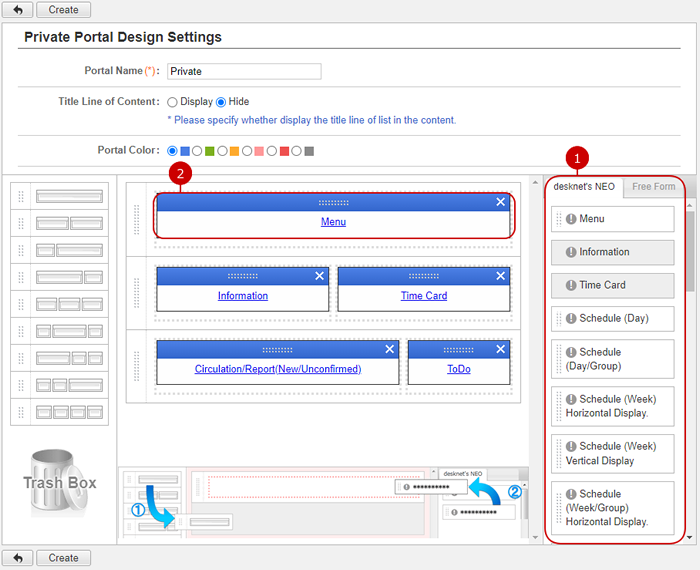

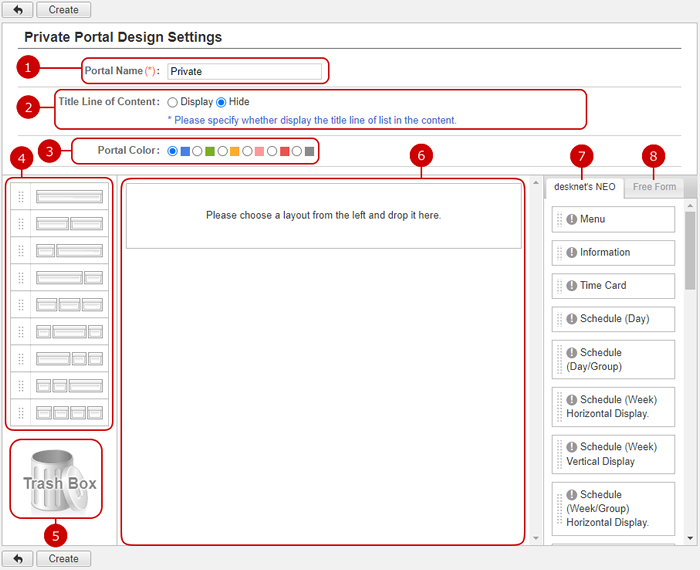

When you press the link of Private Portal Design Settings in Settings menu, Private Portal Design Settings screen is displayed. You can setup Private Portal Design Settings.
* If use of the private portal is not allowed, you cannot use the portal design settings.
Enter a private portal name. The name is displayed on the tab of the private portal.
Choose whether to display title line of content.
Choose a color of the portal. The tab color of the private portal is changed.
Design the layout of contents. press a layout and hold down the mouse button, and then move it to desired place and release the button to place the layout.
Delete layout. Press and hold down the mouse button over the grip on the left side of a layout you want to remove, and then move it to Trash and release the mouse button.
This is space for design the portal. Choose layouts from the left side of the screen and place them, and choose content from the right side of the screen and place it on a layout.
Choose a desknet's NEO's content to be displayed on the portal. Choose a content and place it on a layout. (Please refer to To Setup desknet's NEO Content for more details.)
Choose a free form content to be displayed on the portal. Choose a content and place it on a layout. (Please refer to To Setup Free Forms for more details.)
When the setup is complete, press "Update" button to save the data.
To Setup Layouts

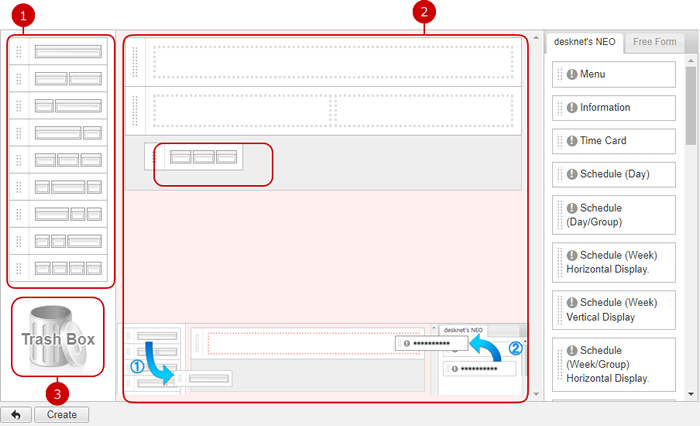

Choose layouts from the layout design list on the left of the screen and place them the portal design setting space in the center of the screen.
Choose a layout. Choose any one of 9 layouts. Press a layout and hold down the mouse button, and then move it to desired place and release the button to place the layout.
Display the layout you placed. You can put content inside of dotted border line. Hold down the mouse button over the grip on the left side of layout and move up and down.Release the mouse button to change the display order of the layout.
Delete layout. Press and hold down the mouse button over the grip on the left side of a layout you want to remove, and then move it to Trash and release the mouse button.
To Setup desknet's NEO Content
Place desknet's NEO content to be displayed on the portal on a layout.
The list of desknet's NEO contents is displayed. When you press "!" symbol, you see the description of the content in balloon. Hold down the mouse button over the grip on the left side of a content and move the mouse to over a layout. When you release the mouse button, the content is placed on the layout.
* Once content has been placed on a layout, its background color is changes and it cannot be placed again.
* If the system administrator has disabled a certain application, its content does not appear in the list. (The WebMail and WebMail IMAP contents are not displayed if you do not have an appropriate email account.)
Edit a portal content. When you press the link of application name, Edit Portal Content screen is displayed. You can set the color of content and other settings.
- Configurable items (excluding contents' colors) by each application.

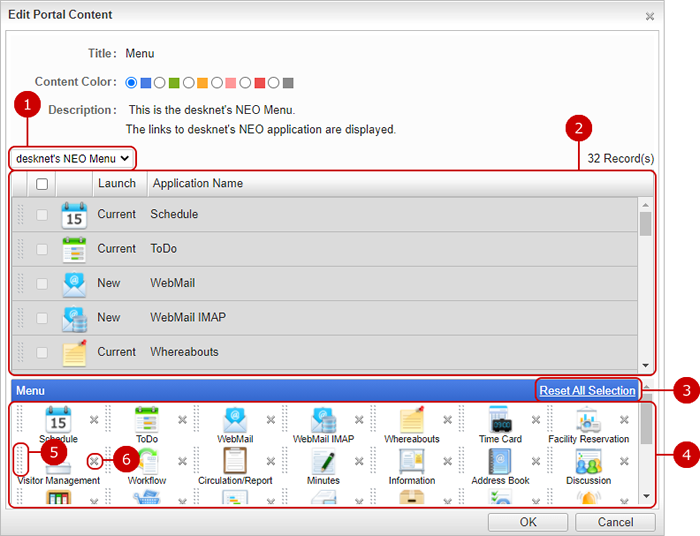

* Menu
The list is switched. Choose any five of followings.
desknet's NEO Menu
Option Menu
Applications
Group Portal
Public Bookmark
Add menu options by move them to the Menu Contents area (under the list). Hold down the mouse button on the grip of a menu option and add it to the menu contents by moving it to the Menu Contents area.
* If you check check boxes, you can add multiple menu items at one time.
Remove all the selected menu options in the menu contents.
All the selected menu options in the menu contents.
Sort a menu option in the menu contents. Hold down the mouse button on the grip of a menu option, move it, and release the mouse button, and the menu option is placed anywhere in the menu contents.
Remove a menu option from the menu contents.

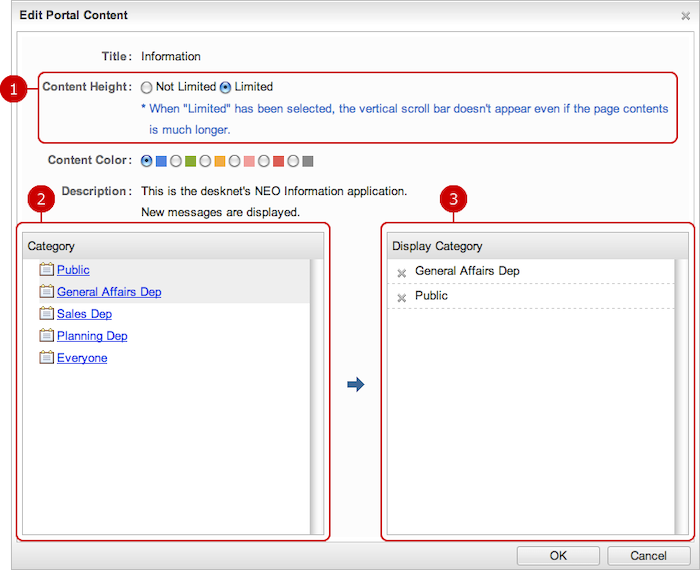

- Information
Define the maximum height of the content.
The categories of Information. Click a category, and it will appear in the right Display Category.

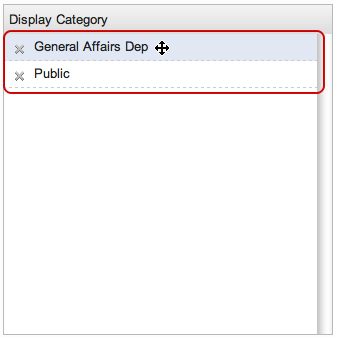

Selected categories which was clicked in the left Category list. These categories will be displayed in the Information content in Portal screen.
- Sort categories of Information content Hold down the mouse button on a category, move it, and release the mouse button, and the category is moved to anywhere in the list.

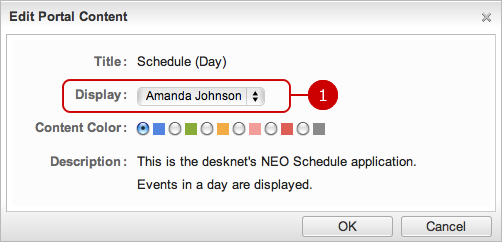

- Schedule (Private)
Select a target user of schedule. You can select one from yourself or other ones.

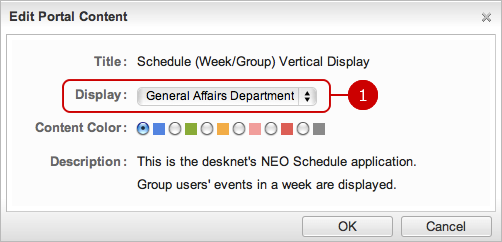

- Schedule (Group)
Select a target group of schedule. You can select one from Default Group or other ones.

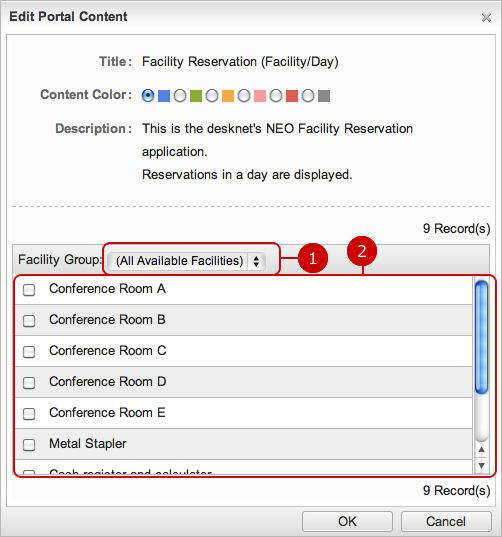

- Facility Reservation
Change the facility groups.
The list of facilities. Check the check boxes of facilities to be displayed in the Facility Reservation content in Portal screen.
* The pulldown menu of Facility Reservation content is displayed based on the order you check the check boxes.

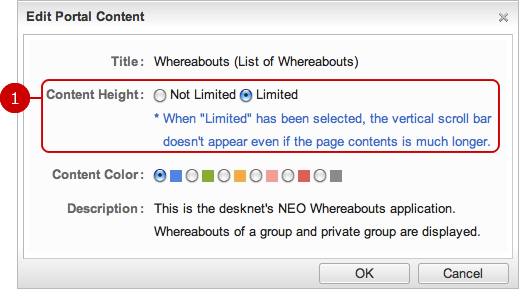

- Whereabouts (List of Whereabouts)
Define the maximum height of the content.

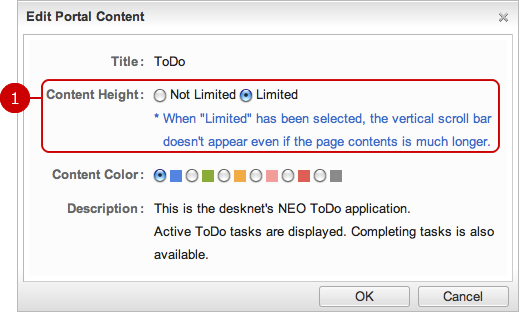

- ToDo
Define the maximum height of the content.

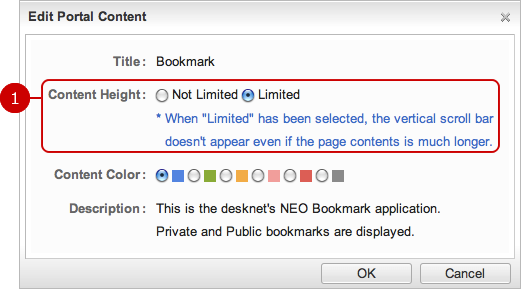

- Bookmark
Define the maximum height of the content.
Click [OK] on the setting window after confirming the settings.

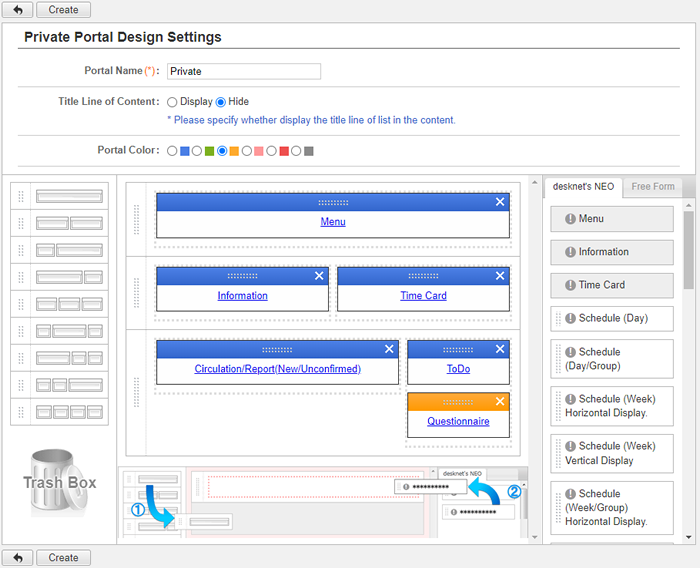

- Contents can be arranged in multiple lines in a layout.

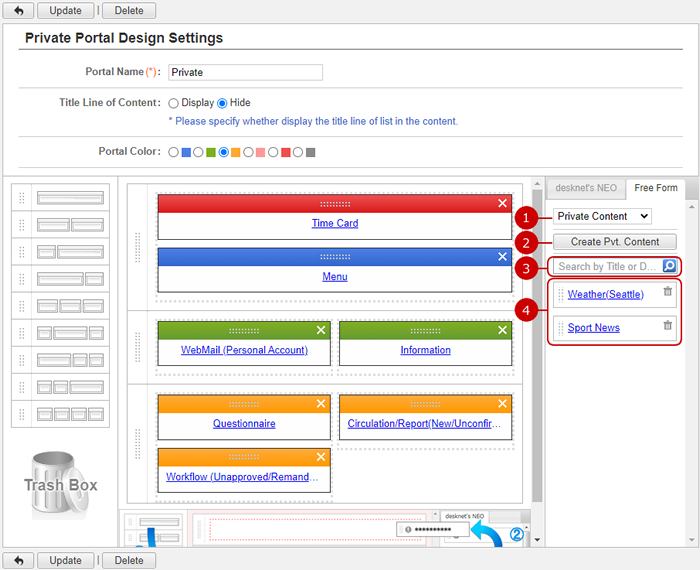

To Setup Free Forms
You can use gadgets and blog parts with useful features or web pages other than desknet's NEO as content.
* If Use Private Content is set to "Disallow" in "Application Management" - "Portal Settings", you cannot use free forms. You can use free forms contents and group contents that have been created by administrators and portal application administrators. (You cannot edit and delete)
Switch content to be displayed in the list. Switch between private contents, group contents and common contents to be displayed in the free form content list.
Create a private free form content. If your portal application administrator set Use Private Content to "Disallow", this button is not displayed.
Search free forms by Title or Details.
* If you want to specify more than one keyword, use space to separate keywords.
* Specifying multiple keywords will perform "OR" search. This means the search results contain either one or more keywords that you specified.
The list of contents is displayed. Contents of the type selected by content switching are displayed. Setting method is the same as desknet's NEO content. Trash icon is displayed for contents created by you. When you press Trash icon, the content is deleted.
To Create Private Content
When you press "Create Private Content" button on Portal Design Settings screen, "Create Private Content" screen is displayed. You can choose one of 4 types of contents, "Gadget/Blog Parts", "URL" "Rich Text" and "Applications".
* If Use Private Content is set to "Disallow" in "Application Management" - "Portal Settings", you cannot create free forms.

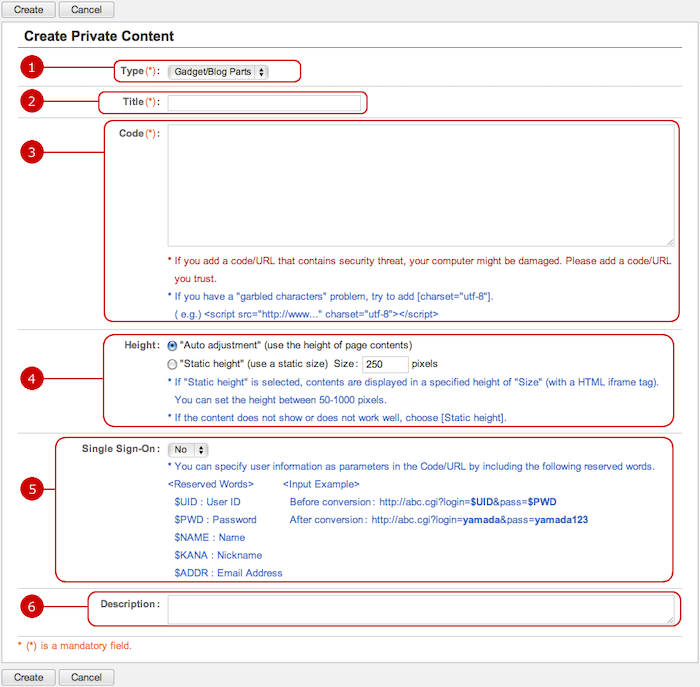

- Creating gadgets/blog parts content
Choose type of content. Choose any one of four types of contents.
Gadget/Blog Parts: Add program (script).
URL: Add a Web page.

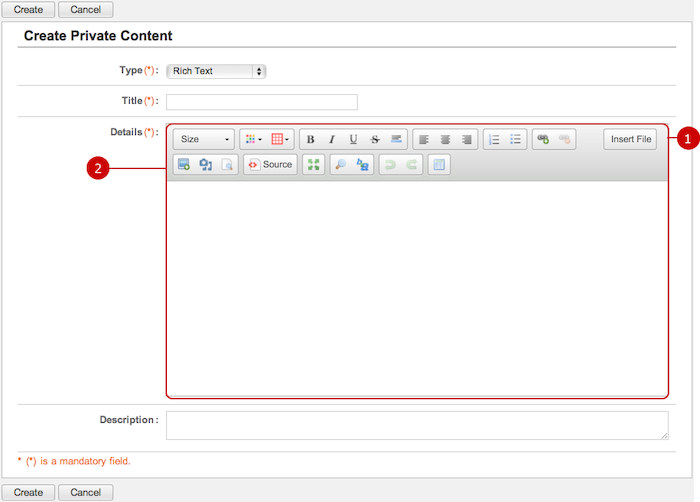

Rich Text: Add text and images by using rich text editor.
Applications: Add data list of an application of AppSuite.
* Displaying clock, weather or stock quotes are typical examples of gadget/blog parts.
Enter a title of content.
Enter script of gadget/blog parts.
*HTML Tags listed below may not work correctly on portal contents. p Tag: The padding property is set to 10px. ol,ul Tag: The marker at the beginning of the list is disabled. img Tag: If an image and text are placed on the same line, they will be placed in the center as their vertical position. input,button Tag: These will be presented in the same appearance as the "Create" button on the Create Private Content screen.
*If the tags do not work correctly, add the style attribute to these HTML elements.
Define the height of the content. If the content does not show up or does not work well, choose "Static Height".
Choose whether to use single sign-on. If you choose "Yes", the reserved words you entered in Code field are replaced by user's information. If the user information is required to parameters of the code, please specify reserved words in the code.
Enter description of the content. The description you entered is displayed in the edit window of the portal content.

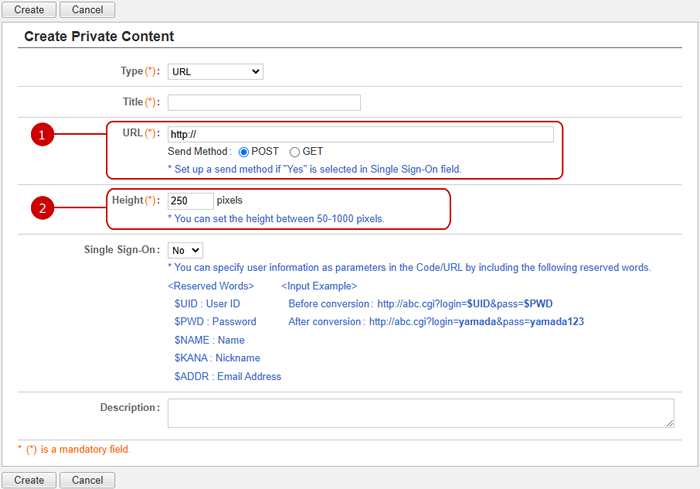

- Creating URL content
Enter a URL of a web page.
Enter a height.
Set up a send method if "Yes" is selected in Single Sign-On field.
Setting of Title, Single Sign-On, Description is similar to creating gadget/blog parts content.

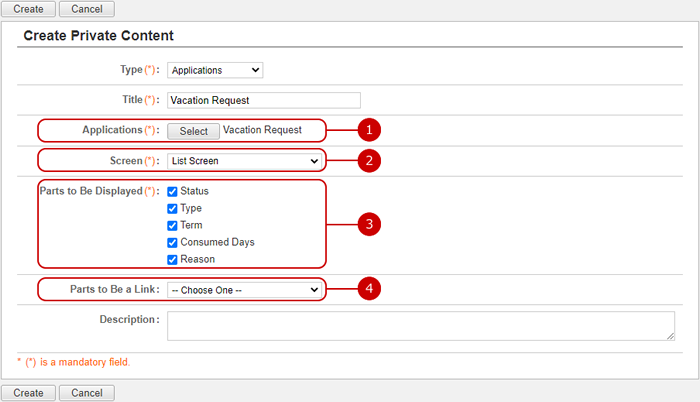

Choose the part to be a link to the details screen of the data.
Setting of Title, Descriptions similar to creating gadget/blog parts content.
Click "Add" button to save and add the data.
To Display Private Bookmarks

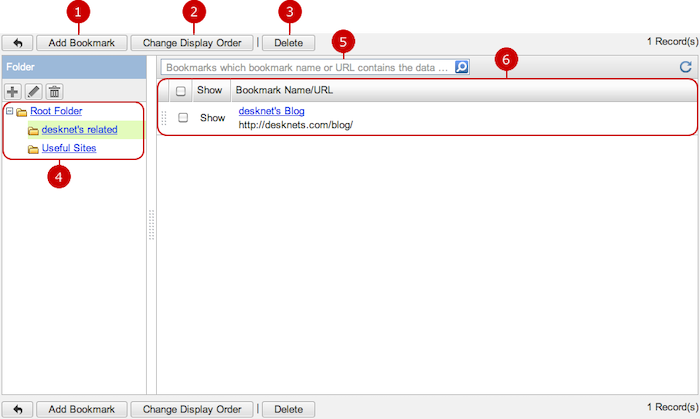

When you press the link of Private Bookmark Settings in Settings menu, Private Bookmark Settings screen is displayed. You can add, edit and delete private bookmarks. You can use bookmarks you created Create are available for bookmark of the portal content.
Create a bookmark.
Change the display order of bookmarks you selected. Choose purpose items on the list and then press "Change Display Order" button to switch the screen mode to Change Display Order mode. In Change Display Order mode, choose the destination of the bookmarks. You can choose more than one bookmark at once.
* Press and hold down the mouse button over the data you want to move and move the mouse and release the mouse button on desired place to change the display order.
Delete the selected bookmarks. Select bookmarks you want to delete and press this button to delete them. You can select more than one bookmark.
Container to store bookmarks in each category called folder. When you press the link of each folder, bookmarks stored in the folder are displayed. You can add, edit and delete folders here. (For more details, please refer to To Manage Folders .)
You can find bookmarks by the keyword search function. "Bookmark Name" and "URL" of bookmarks in the folder are searched.
* If you want to specify more than one keyword, use space to separate keywords.
* Specifying multiple keywords will perform "OR" search. This means the search results contain either one or more keywords that you specified.
The list of bookmarks is displayed. When you press a link of the bookmark name, the edit bookmark screen is displayed.
To Add Bookmark

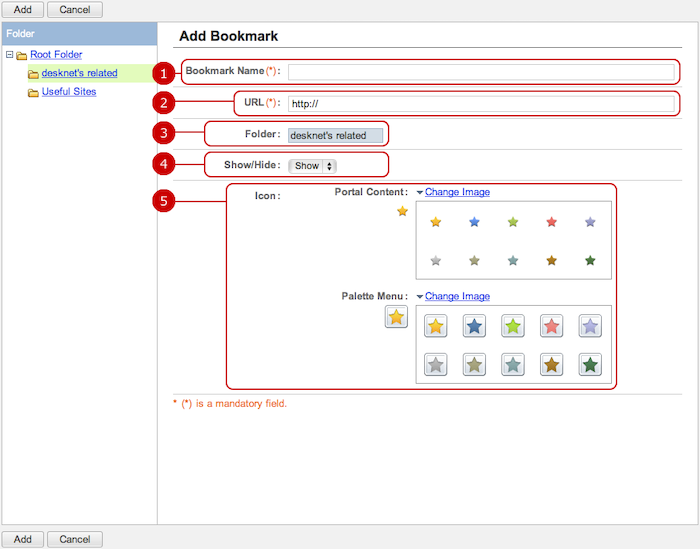

When you press "Add Bookmark" button, Add Bookmark screen is displayed.
Enter a bookmark name.
Enter a URL of the bookmark.
Choose a folder to save the bookmark. Choose the folder where you want to save the bookmark from the folder list on the left.
Choose Show or Hide. If you choose "Hide", the bookmark is not displayed.
Choose icons for the bookmark. You can set icon to be displayed in the portal content and icon to be displayed in the palette menu. Icon can be selected from predefined icons. When you press "Change Image" link and choose "Upload Image" from the menu, the uploading screen is displayed. You can press "Browse" button to choose an image file to upload.
* If you upload an image file, the size of the image file is reduced to 14 x 14 pixels (width x height) for the portal content, and 30 x 30 pixels (width x height) for the palette menu. * You can add a file smaller than or equal to 10 kilobytes.
Click "Add" button to save and add the data.
To Edit Bookmark

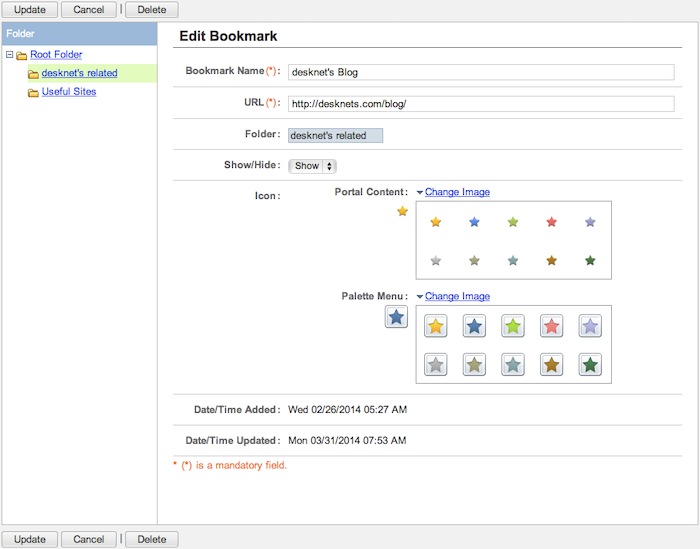

When you press a link of the Bookmark Name, Edit Bookmark screen is displayed.
You can change any information of the bookmark. Click "Update" button to save the changes.
To Delete Bookmark
When you press "Delete" button on the list of bookmarks or Edit Bookmark screen, a confirmation window is displayed. When you press "Yes" button, the bookmarks are deleted. The deleted bookmarks cannot be recovered. Please take note.
To Manage Folders
You can add, edit and delete folders in the list of folders.
Create a folder. When you press "Create Folder" button, Create Folder screen is displayed. Enter a folder name and choose an icon and save. You can create folders under another folder.
Edit a folder name. When you choose a folder you want to change the name and press "Edit Folder" button, Edit Folder screen is displayed. Enter a name and save.
Delete a folder. When you choose a folder you want to delete and press "Delete Folder" button, a delete confirmation window is displayed. When you press "Yes" in the delete confirmation windows, the folder is deleted.
* Please note that all the folders and sub folders and bookmarks under the folders are deleted.
* Press and hold down the mouse button over a folder and move the mouse up and down and release the mouse button on desired place.
To Search Bookmarks
When you open the menu on the left side of screen, the bookmark search function appears. You can find bookmarks by entering the conditions, such as keyword, data update.
Enter keywords. The search function searches in "Bookmark Name" and "URL" by the keywords.
* If you want to specify more than one keyword, use space to separate keywords.
* Specifying multiple keywords will perform "OR" search. This means the search results contain either one or more keywords that you specified.
Choose a folder to be searched. You can choose either "All" or "Selected Folder". The search function searches in the target folder.
Specify the period of update date. When you click an entry field, a calendar will be displayed. Click a date on the calendar, and it will be set to the field.
* Enter a date in MM/dd/yyyy format, numeric.
When you press "Search" button, bookmarks that match the search criteria are displayed in the list screen.
When you press [] button, all search conditions are cleared.
